Hamilton, 1/4"-28 PTFE Tubing Assembly, 18 Gauge, Two Fittings with Strain Relief, PN: 88901

Name: 1/4"-28 PTFE Tubing Assembly, 18 Gauge, Two Fittings with Strain Relief, PN: 88901
Brand: Hamilton
SKU: 88901

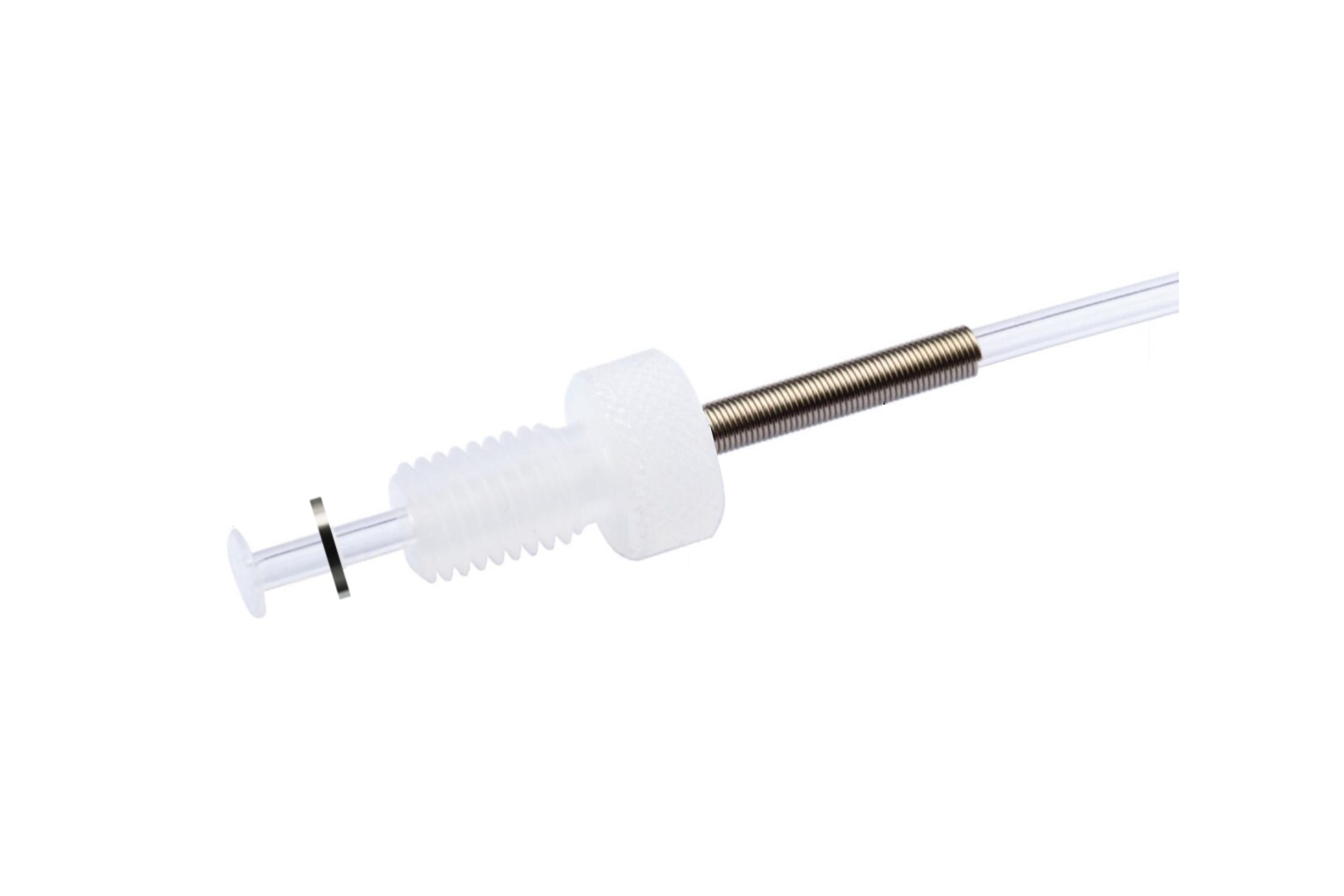

Hamilton’s ¼”-28 tubing assembly features two precision machined, 1/4”-28 (IS/IS) PCTFE fitting(s) with strain relief spring(s) across high-quality 18 G (0.067" O.D. / 0.043" I.D.), PTFE tubing. Customizable tube length between 1 and 120 inches. Compatible with any flat-bottom ¼”-28 port. Hamilton’s PTFE tubing and PCTFE fittings are chemically resistant, temperature resistant, and durable for a leak-free connection each time

Catalog Number: 88901

Pricing

Request a quote.

View RFQ List

General

Tubing Material	PTFE
Washer Material	Stainless Steel
Gauge	18 gauge
Tubing Inner Diameter (I.D.)	0.043 in / 1.092 mm
Tubing Outer Diameter (O.D.)	0.067 in / 1.702 mm
Washer Inner Diameter (I.D.)	0.073 in / 1.854 mm
Washer Outer Diameter (O.D.)	0.189 in / 4.801 mm
Tubing Length	Custom Length
Nut Length	IS (0.60")
Fitting Material	CTFE
Number of Fittings	2
Fitting Inner Diameter (I.D.)	0.089 in / 2.261 mm
Fitting Outer Diameter (O.D.)	0.118 in / 2.997 mm
Threads	¼"-28
Strain Relief	Yes
Sales Quantity	1 each
Tubing End 1	1/4"-28 IS w/Strain Relief
Tubing End 2	1/4"-28 IS w/Strain Relief
